Humminbird Helix 7 Chirp MSI GPS G3N
Humminbird Helix 7 Chirp MSI GPS G3N

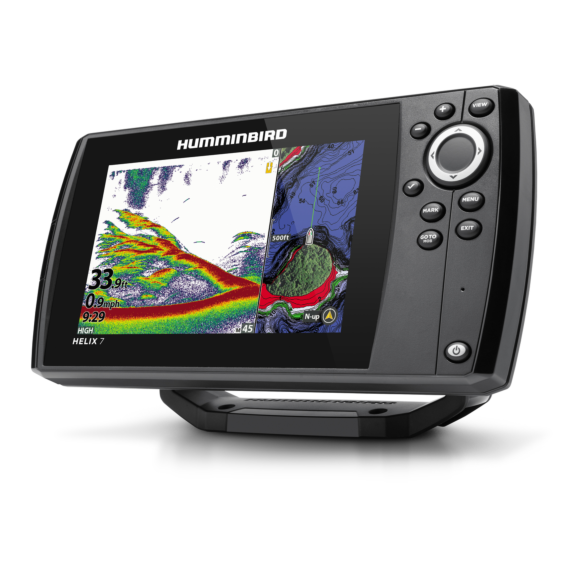

The HELIX 7 CHIRP MEGA SI GPS G3N fish finder features MEGA Side Imaging, MEGA Down Imaging, Dual Spectrum CHIRP Sonar, Ethernet networking capability, Bluetooth, AutoChart Live, GPS and Humminbird Basemap built-in. The 7", the ultra-wide display gives you ample room to view the many pre-loaded split screen view options.
The HELIX 7 CHIRP MEGA SI GPS G3 fish finder features MEGA Side Imaging, MEGA Down Imaging, Dual Spectrum CHIRP Sonar, AutoChart Live , GPS and Humminbird Basemap built-in. The 7", ultra-wide display gives you ample room to view the many pre-loaded split screen view options.

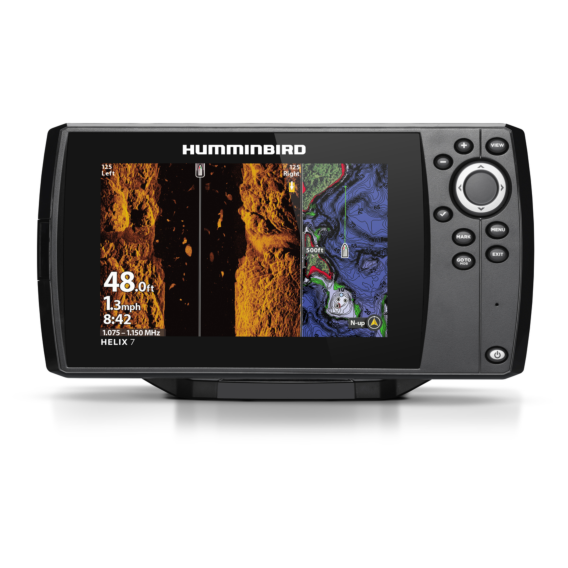

- NEW to HELIX 7- MEGA Side Imaging: See the world below like never before with crystal-clear viewing out to 125 feet on either side of your boat. You'll unlock new details with up to 3X more output than standard Side Imaging sonar.

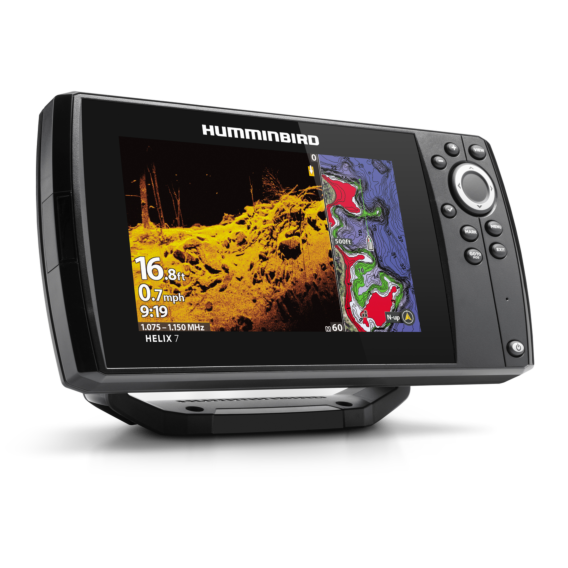

- NEW to HELIX 7- MEGA Down Imaging: Get unprecedented underwater clarity with coverage down to 125 feet below your boat. You'll unlock new details with up to 3X more output than standard Down Imaging sonar.
- Dual Spectrum CHIRP: Before you cast, know what's down there thanks to long, well-defined fish arches, and a clear view of the fish-holding structure and the bottom. Powered by our proprietary, Low Q CHIRP transducer, Dual Spectrum offers two ways to search: wide mode for maximum coverage and narrow mode for maximum detail.
- SwitchFire Sonar: Take command of how your sonar returns appear. With two display modes, you can add or remove detail, account for water depth, temperature and turbulence, even watch lure presentations - all at the push of a button.
- Humminbird Basemap Built-in: Our enhanced standard basemap provides you with a clear view of underwater terrain and surrounding points of interest so you can fish and navigate with total confidence. Identify buoys, day markers, hazards, marinas, contours, depth markers and much, much more. Includes charts of more than 10,000 lakes, plus coastal coverage for the U.S.
- AutoChart Live: Create real-time maps of your fishing spots, with access to patented Humminbird® LakeMaster® features. Map depth contours, bottom hardness and vegetation as you drive your boat, with eight hours of built-in recording time.
- Ethernet Networking: High-speed Ethernet allows you to build a powerful, professional-grade fishing system. Easily connect multiple fish finders, or upgrade to add-on technologies like Minn Kota i-Pilot Link, 360 Imaging and CHIRP Radar.
- Bluetooth: Enable features like wireless software updates from the Humminbird FishSmart App and also keep your phone out of the water and in your pocket by displaying notifications on your Humminbird. Additionally, you can take control of your most-used features with an optional Bluetooth remote (RC2).
- LakeMaster Compatible: Upgrade to the unrivalled accuracy and detail of Humminbird LakeMaster maps. From easy-to-read contours to highlighted depth ranges, to scrollable lake lists, you'll have all the tools you need to make every moment count.
- Navionics Compatible: Humminbird provides even more map options thanks to additional Navionics compatibility. Available maps regions include detailed cartography for saltwater and freshwater applications which make Navionics a great option for fishing, cruising or sailing.
- Includes transducer and mounting hardware, power cable, gimbal mounting bracket.
- 1-Year Limited Warranty
Item Number411080-1SeriesHELIXDisplay Size - Diagonal7"Display Pixel Matrix800H x 480VSonar-StandardDual Spectrum CHIRP, MEGA Down Imaging, MEGA Side ImagingSonar-Coverage20°, 42°, 60° & (2) 86° @ -10dBSonar-Optional50 kHz, 50/Low Airmar CHIRPCHIRP - Frequencies SupportedFull Mode (150-220 kHz), Narrow Mode (180-240 kHz), Wide Mode (140-200 kHz)Sonar-Frequencies Supported50/83/200/455 kHzDepth-Sonar1,200 ft (standard transducer), 3,500 ft (optional 50 kHz)CHIRP - Imaging-Frequencies SupportedMEGA DI (1075-1150 kHz), MEGA SI (1075-1150 kHz), 455 kHz (440-500 kHz)Depth-Down Imaging480 ft (455 kHz), 75 ft (MEGA)Range-Side Imaging (Side-To-Side)480 ft (455 kHz), 75 ft (MEGA)InterfaceKeypad ControlFeaturesBluetooth, Built-In GPS, Built-In Mapping, Down Imaging, Dual Spectrum CHIRP, MEGA Imaging, Networking, Side ImagingMemory Card SlotSingle Micro SDCompatible WithAIS, AutoPilot, Minn Kota i-Pilot Link, Minn Kota Talon/Raptor, NMEA 2000, Radar, One-Boat Network, Minn Kota Built-In MEGA DI, Minn Kota US2 SonarPower Draw800 mAPower Input10.8-20 VDCPower Output Peak-to-Peak4000 WattsPower Output RMS500 WattsScreen SnapShotIncludedSonar RecordingIncludedMount-StandardGimbalMount-Standard Size10.54" W x 5.8" H x 3.68" DMount-Optional Size10.54" W x 5.44" H x 1.13" DTransducer Mount LocationTransomGPS ChartplottingIncludedGPS TrackplottingIncludedLakeMaster CompatibilityYesCoast Master CompatibilityYesNavionics Gold/HotMaps CompatibilityYesNavionics Platinum + CompatibilityYesPlatinum CompatibilityYesHeading Sensor GPS CompatibilityYesUpgradable SoftwareYesView Preset KeysNoX-Press Menu SystemYesCustom Digital ReadoutYesCustom View SelectionsYesDisplay Colors Grayscale16-BitDisplay Size5" - 7"SpeedIncludedTemperatureBuilt-InTemperature AlarmYesTemperature GraphYesTransducer IncludedXNT 9 HW MSI 150 THDMI CompatibleNoMEGA Live CompatibilityNo
