Humminbird PiranhaMax 4 Fishfinder Echo sounder
Humminbird PiranhaMax 4 Fishfinder Echo sounder

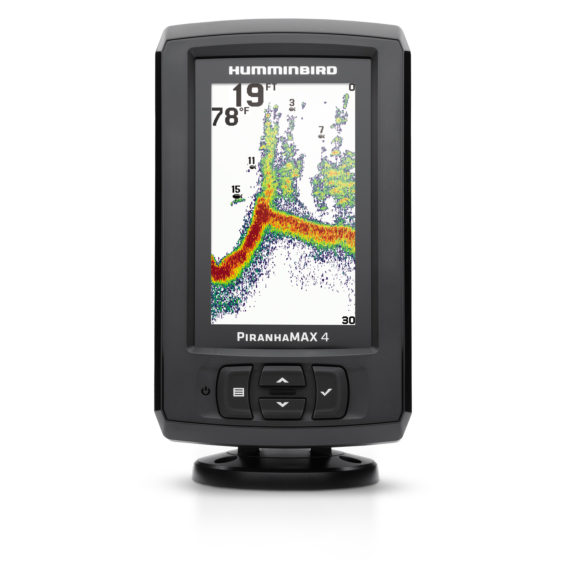

With modern styling and a larger 4.3" color LCD, the PiranhaMAX™ 4 will give you a fresh perspective on what's below your boat. Thanks to a redesigned, even easier-to-use interface, Fish ID+™, fish alarms, depth alarms and zoom has never been simpler. Feature for feature, it packs a technological chomp that no fish finder in its class can match.
Dual Beam Sonar: Choose from a narrow and a wide beam for great detail or a generous coverage area, helping you identify fish, structure and contours.
Tilt and Swivel Mount: Quickly adjust your viewing area angle.
1-Year Limited Warranty
Series PiranhaMAX
Display Size - Diagonal 4.3"
Display Pixel Matrix 272H x 480V
Sonar-Standard Dual Beam
Sonar-Coverage 28° & 16° @ -10dB
Sonar-Frequencies Supported 200/455kHz
Depth-Sonar 320 ft (20) 455 kHz, 600 ft (20) 200 kHz
Depth-Down Imaging 320 ft
Interface Keypad Control
Memory Card Slot None
Power Draw180 mA
Power Input 10.8-20 VDC
Power Output Peak-to-Peak 2400 Watts
Power Output RMS 300 Watts
Screen Snap Shot Not Supported
Mount-Standard Gimbal

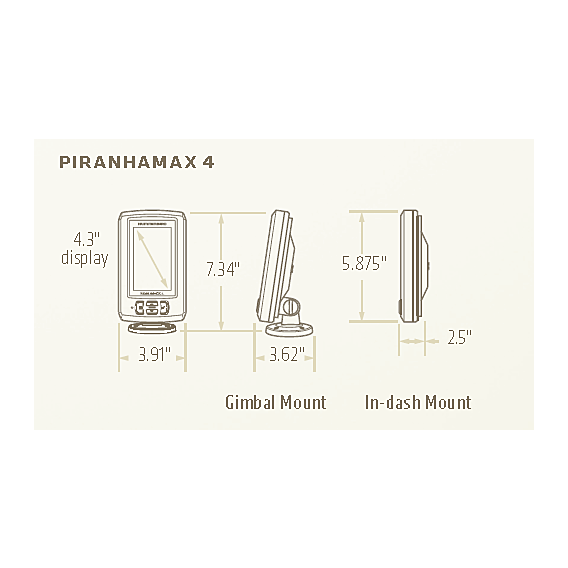

Mount-Standard Size 3.91" W x 7.34" H x 3.62" D
Mount-Optional In-Dash Mounting Kit
Mount-Optional Size 3.91" W x 5.875" H x 2.5" D
Transducer Included XNT 9 28 T
Transducer Mount Location Transom
GPS Chartplotting Not Supported
GPS Receiver Not Supported
GPS Trackplotting Not Supported
Humminbird Basemap Not Supported
LakeMaster Compatibility No
Platinum Compatibility No
Target Separation 2.5"
Upgradable Software No
Display Colors Grayscale 256 Color
Display Type Color TFT
Speed Not Supported
Temperature Built In
Warranty One-Year Warranty
